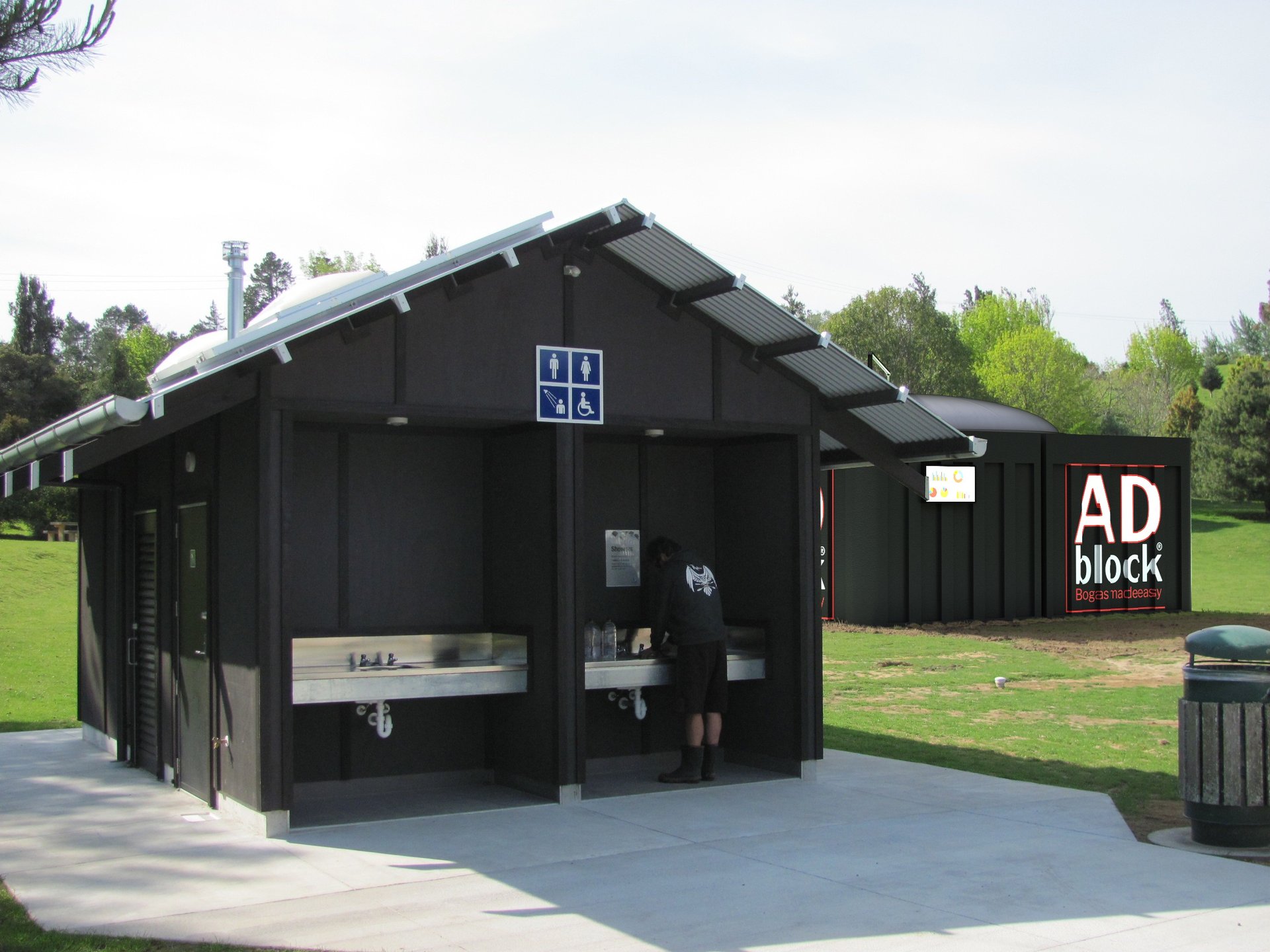

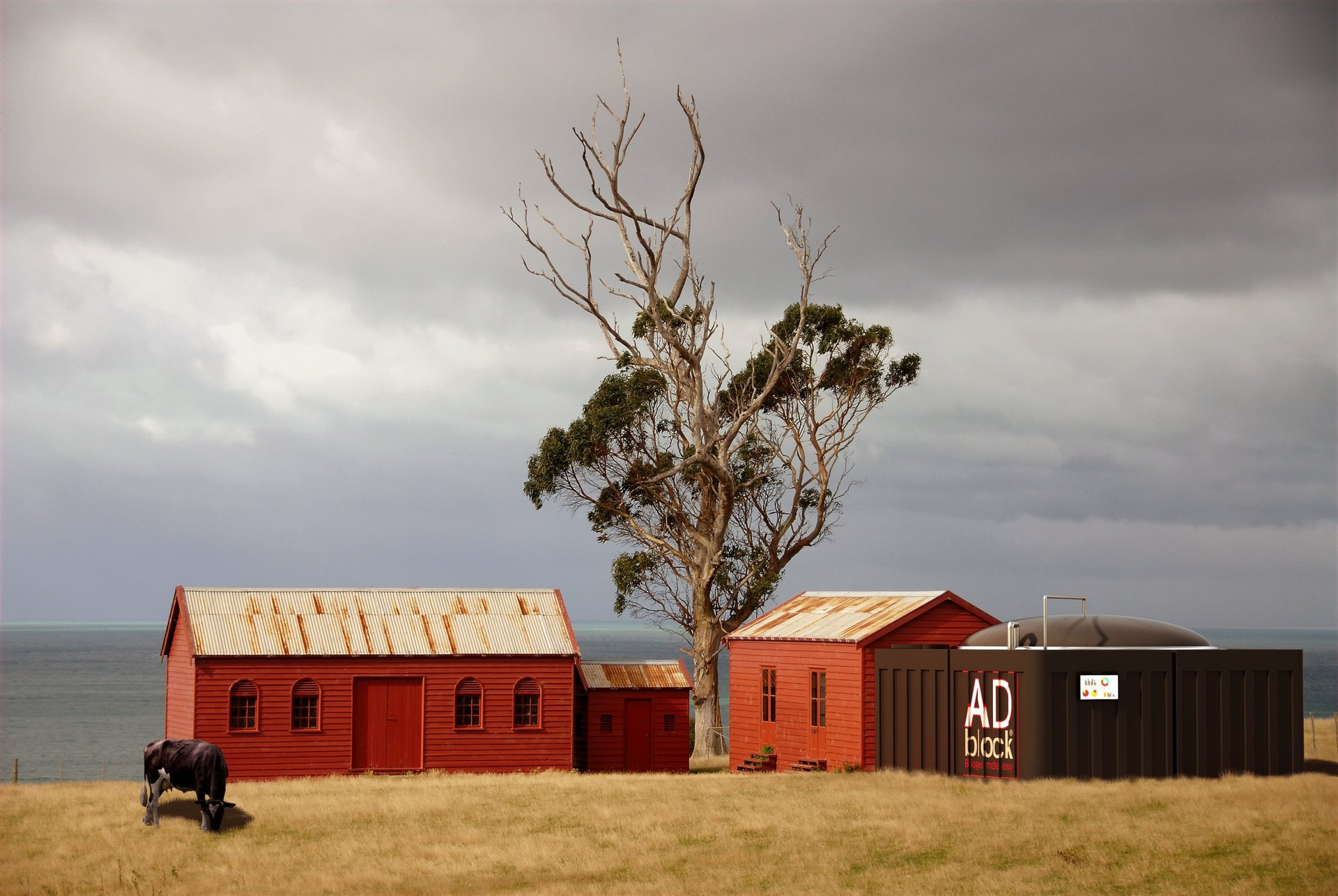

ADBlock® Micro-Digester

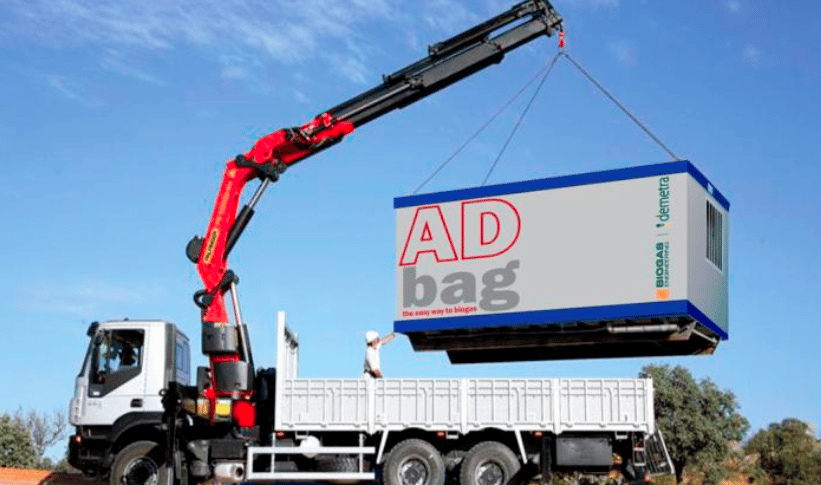

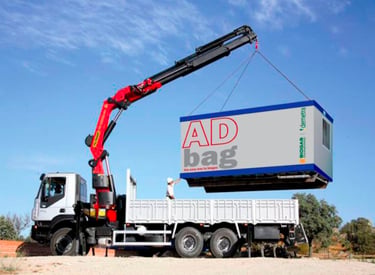

ADBag® is a fully prefabricated anaerobic digestion system developed by Demetra to convert diverse organic wastes into renewable biogas and high-value bio-fertilizer.

Technical Overview

ADBlock® is Demetra’s ultra-compact, fully prefabricated anaerobic digestion unit, built on the same patented continuous-mixing principle as ADBag®. Housed on a 6 m × 6 m × 2.5 m square skid, it integrates a reinforced-plastic reactor bag, recirculation & heat-exchange system, control panel and biogas/feed-digestate storage tanks. Designed for plug-and-play deployment and remote operation, ADBlock® produces clean power and heat from up to 12% DM organic waste streams.

Key Specifications

Reinforced-Plastic Bag Reactor & Base Skid

A 30 m³ fabric-lined reactor sits atop a welded steel base that houses all hydraulics, controls, tanks and optional ORC micro-turbine.

Continuous Hydraulic Mixing

A low-power recirculation pump withdraws slurry from the bag floor, grinds solids and re-injects via multi-nozzle diffusers—preventing sedimentation and ensuring uniform bacterial contact.

Digital & Remote Management

An onboard PLC with touchscreen and dedicated mobile app provides local control; secure VPN access enables real-time monitoring, setpoint adjustment and predictive maintenance from Demetra’s operations centre.

Applications

Civil-Support
Military Camps

Forward operating base with field kitchens generating ~1 m³/day of organic waste.
Deployment: ADBlock Mini + 12 kW ORC → 14 240 kWhₑ & 55 000 kWhₜ annually.

Benefits:
On-demand power for communications & lighting
Heat for water pasteurization/sterilization
Elimination of waste hauling logistics

ADBlock® Micro-Digester IS DESIGNED FOR FLEXIBILITY

Developing-Country Off-Grid Community

50-household village, 4 m³/day kitchen & livestock residues.
Deployment: ADBlock Maxi (120 m³) + 30 kW ORC → 57 672 kWhₑ & 218 195 kWhₜ annually.

Benefits:
Reliable lighting and charging for phones/small appliances
Cooking gas substitute, thermal support for schools/clinics
Local fertilizer from digestate to boost food security

Remote
Eco-Resorts

20-bungalow eco-lodge, 1 m³/day organic kitchen & garden waste.
Deployment: ADBlock Mini + 6 kW ORC → 14 240 kWhₑ & 55 000 kWhₜ annually.

Benefit:
Carbon-neutral energy & hot water for guest cabins
On-site waste valorization aligns with eco-branding
High reliability with minimal onsite expertise required

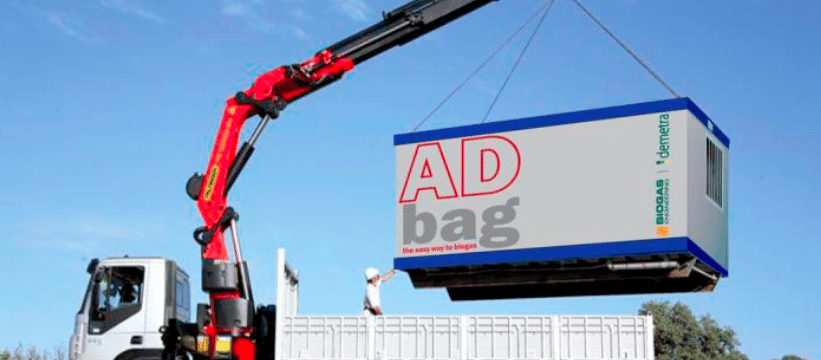

Discover ADBag® Modular Digester

ADBag®

Fully prefabricated system delivering +50% more methane and 30% shorter retention in a relocatable, plug-and-play package.

→
